LITEguard City Boxes
LITEguard City Boxes
LITEguard City Boxes

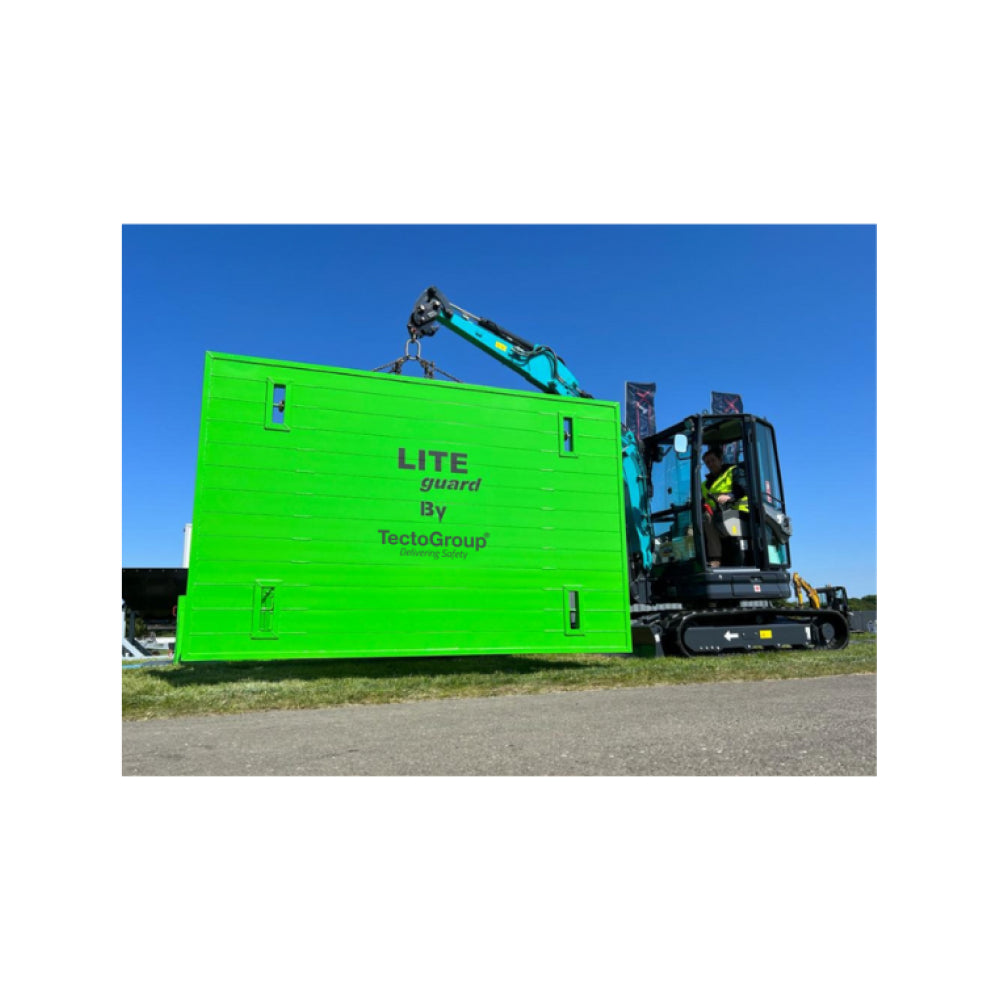

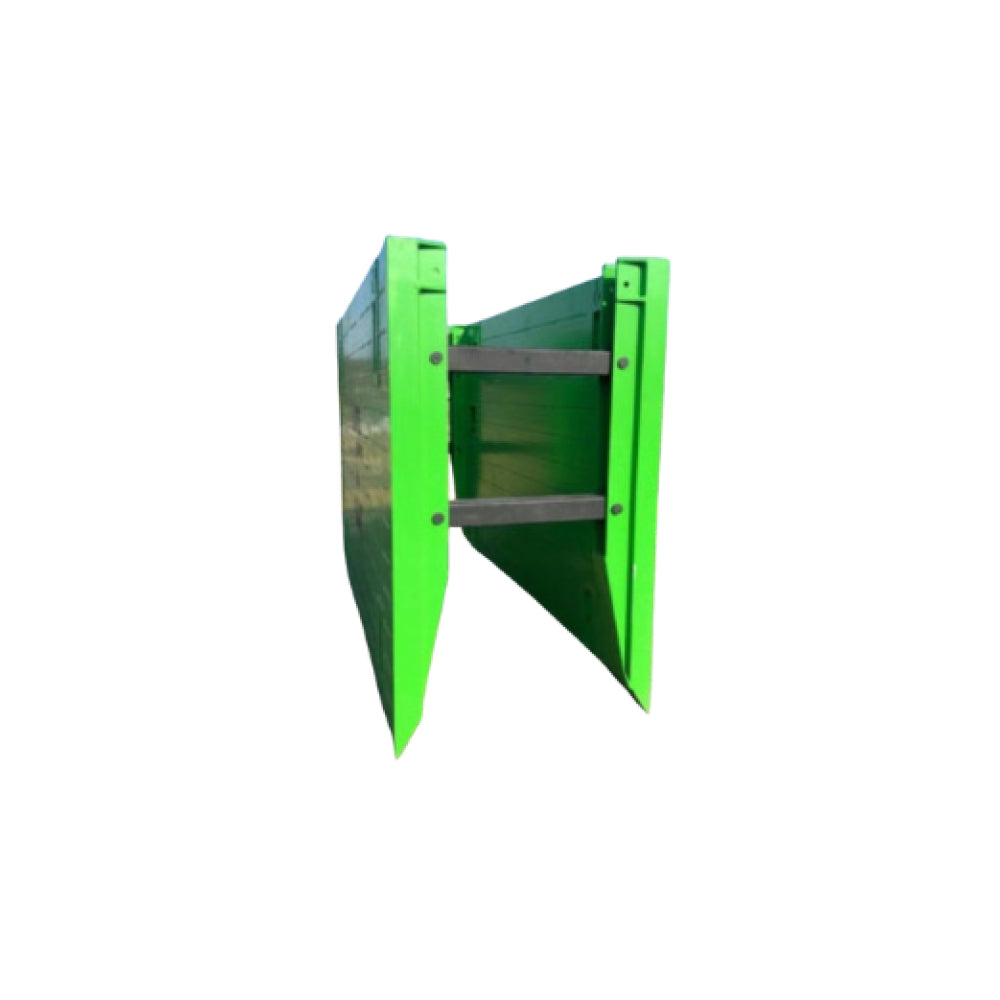

The TectoGroup® LITEguard City Box is a compact trench shield perfect for excavation in tight and limited access sites and roads due to the narrow panels allowing for maximum width and minimal backfill. These boxes are designed for ‘dig and place’ work and heave narrow panel walls with an impressive working load limit.
Size: 3000mm X 1965mm X 56mm
Weight: 193Kg
Main Features:
- Machine size in the 3 tonne to 7 tonne range
- Can be inverted to allow for stacking
- Rated at 30 Kn/m2
- For use in dig and place (no cutting edge)
- Easy to transport, flat packed or assembled on a small truck or work van.
Technical Data
Panel Length: 3000mm
Panel Height: 1965mm
Working Load Limit: 30 kN/m2
Panel Thickness: 56mm
Under Strut Clearance: 950mm
Unit Weight inc. 1000mm Struts: 445Kg
Hire Code: SEH3022
